Parametric Family: Runway Track

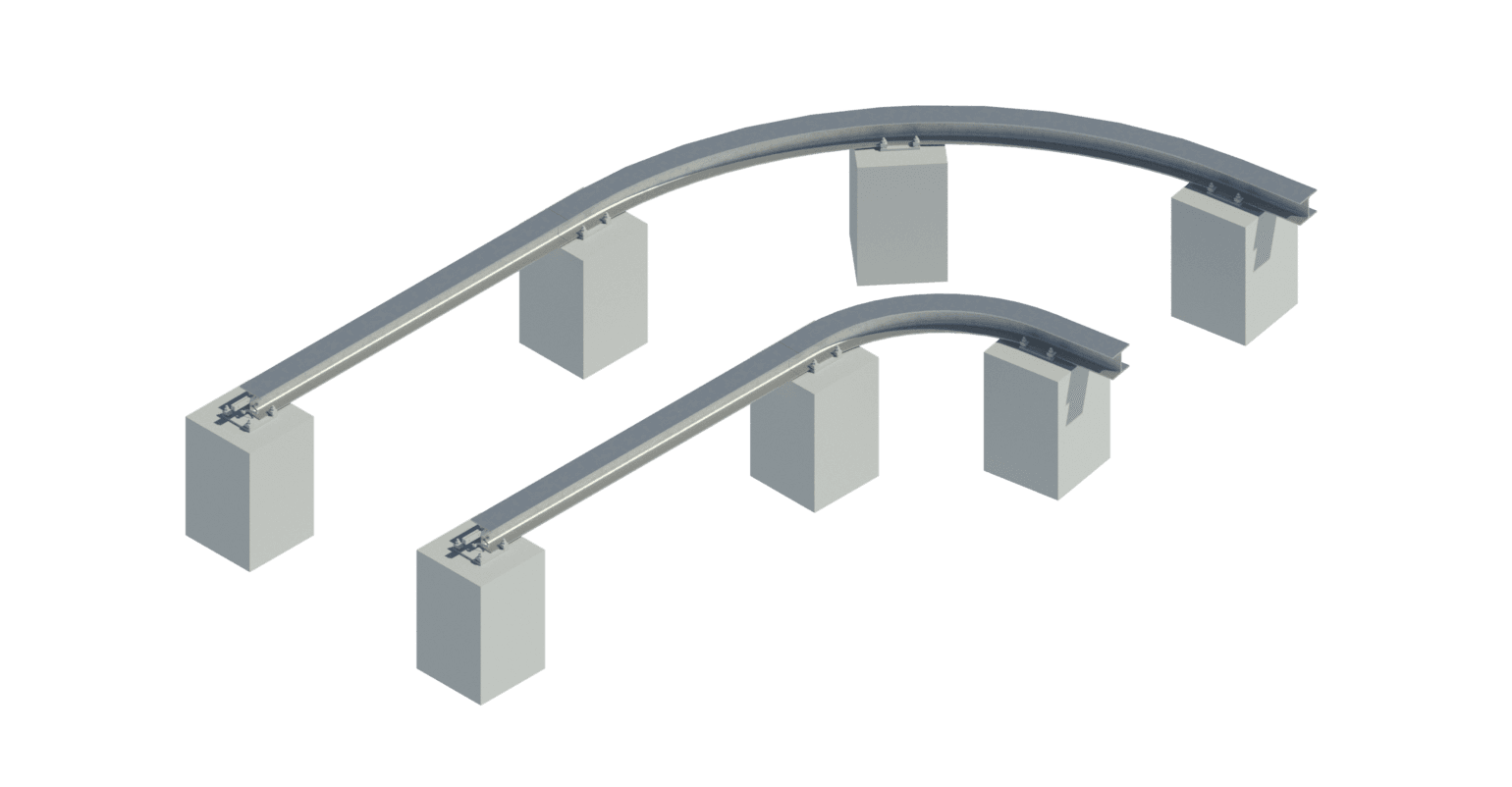

The 3D object adapts according to user choices. The user draws the centreline and the parametric family automatically places the support pads.

Features: automatic positioning of pads and fixings, curve angle and radius definition, rail type selection (HEA 140, HEB 160, IPE 120) and joint type, automatic fixing size adaptation, linear measurement calculation in Revit schedules.
