Parametric Family: Scorpio Crane

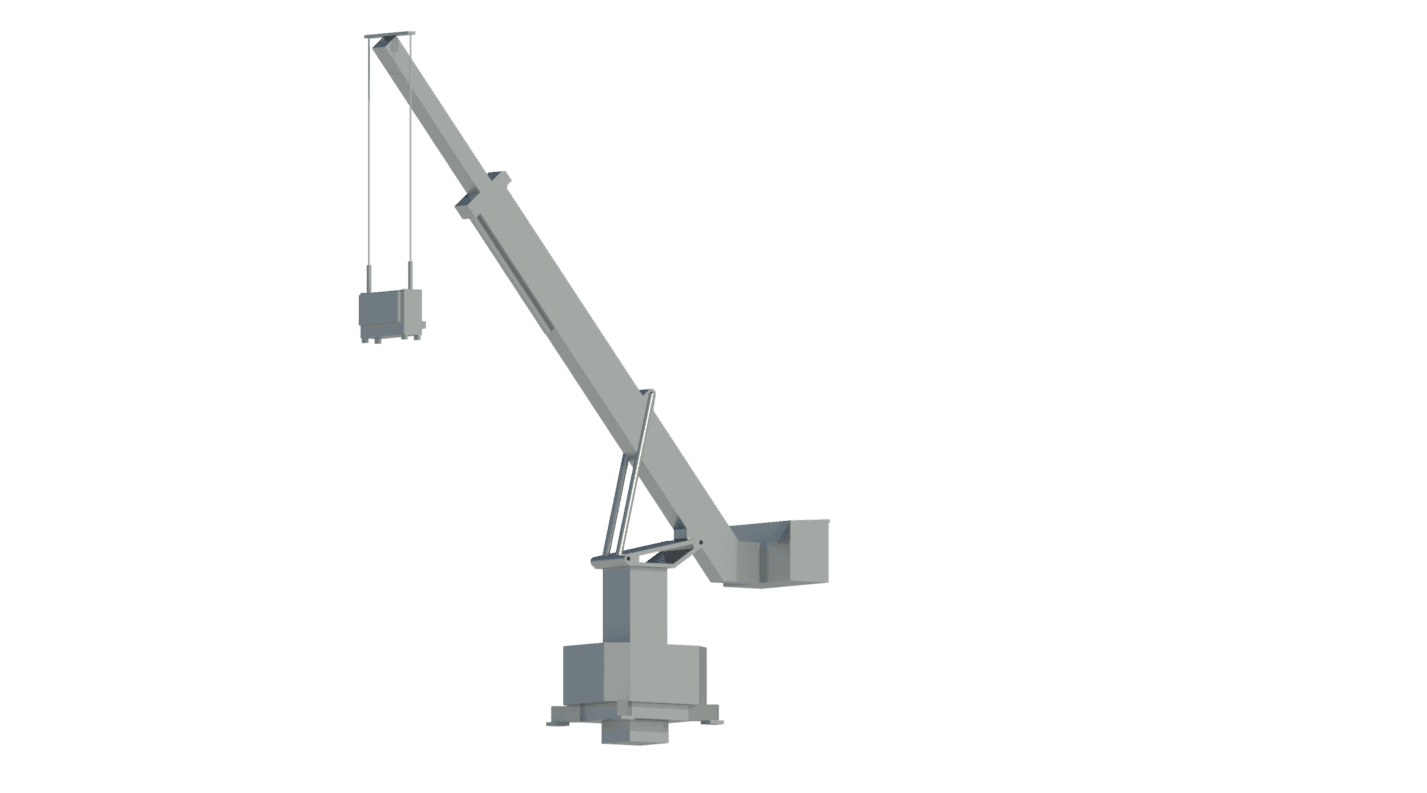

In order to visualise the machine's placement on a rooftop and check its clearance, a crane with gondola was modelled in Revit 2019.

The 3D object adapts according to user choices: telescopic arm angle, gondola cable length and base position. Thanks to its simplified geometry, the Scorpio family does not overload the digital model.
