Gare Pleyel: Railscaf Family and Gantry Crane Tractel

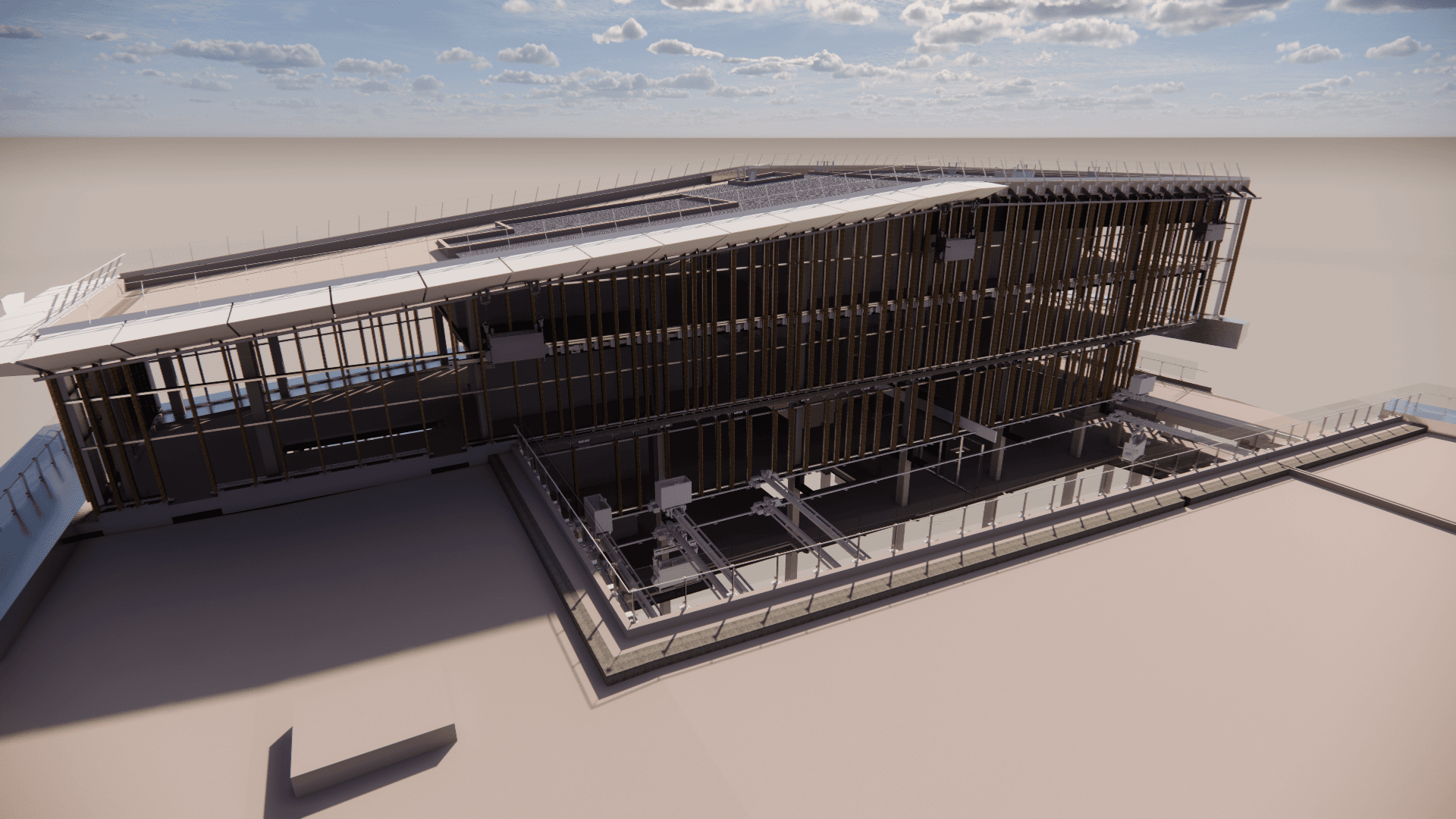

As part of the Saint-Denis Pleyel station project in Paris, Tractel offers a maintenance system for the glass canopy. The first system is an overhead crane on the canopy with a basket and the second an overhead crane beneath the canopy with a gondola.

The systems were positioned in 4 use cases: parking position, gondola at the start of the rail, gondola at the end of the rail and swing arm unfolded. On the other part of the building, the Railscaf system was installed with 48 brackets positioned taking into account the eaves and the structure. The project was geolocated for overlay with the IFC model.
